Driveway Construction Standards in Guildford

Understanding Guildford’s Ground Conditions

Guildford’s soil profile varies by area:

• Burpham / Merrow: lighter sandy loam that drains well but can move if under-supported.
• Shalford / Bramley: heavier clay pockets that hold water and require deeper, stronger sub-bases.
• Stoughton / newer estates: made-up ground and mixed fill, often needing careful excavation and consolidation.

These differences affect excavation depth, sub-base specification and drainage design for each driveway. On steeper plots or where water runs towards the house we will often combine driveway works with wider drainage and groundworks improvements.

Correct Driveway Excavation Depths

For a strong driveway, excavation must reach stable ground:

• Block paving driveways: 200–350 mm total excavation.
• Gravel driveways: 150–250 mm.
• Natural stone setts: 200–300 mm.
• Reinforced or premium courtyards: up to 400 mm where ground is weak.

The exact depth depends on ground conditions, expected traffic and finished levels at thresholds and the highway.

MOT Type 1 Sub-Base – The Foundation

The sub-base is the structural heart of a driveway. In Guildford we typically use:

• 100–200 mm MOT Type 1 compacted in layers for standard domestic use.
• Type 3 permeable sub-base where SUDS-compliant systems are required.
• Geotextile membrane where clay or made-up ground risks contamination or movement.

Getting this layer right is the difference between a driveway that looks good for decades and one that ruts or sinks after a few winters.

SUDS & Drainage Rules for Guildford

For front gardens in England, driveways must comply with SUDS (Sustainable Drainage Systems) rules unless:

• The new surface is under 5 m², or
• Water drains into your own permeable area such as a lawn or soakaway rather than the highway or sewers.

Typical drainage solutions we use include:

• Channel drains at thresholds, discharging into a soakaway or landscaped area.
• Permeable block or resin systems with a suitable sub-base build-up.
• Careful falls that direct water away from the house and public highway.

Our planning permission & drainage rules for Guildford guide explains how these requirements affect front garden driveways and parking courts.

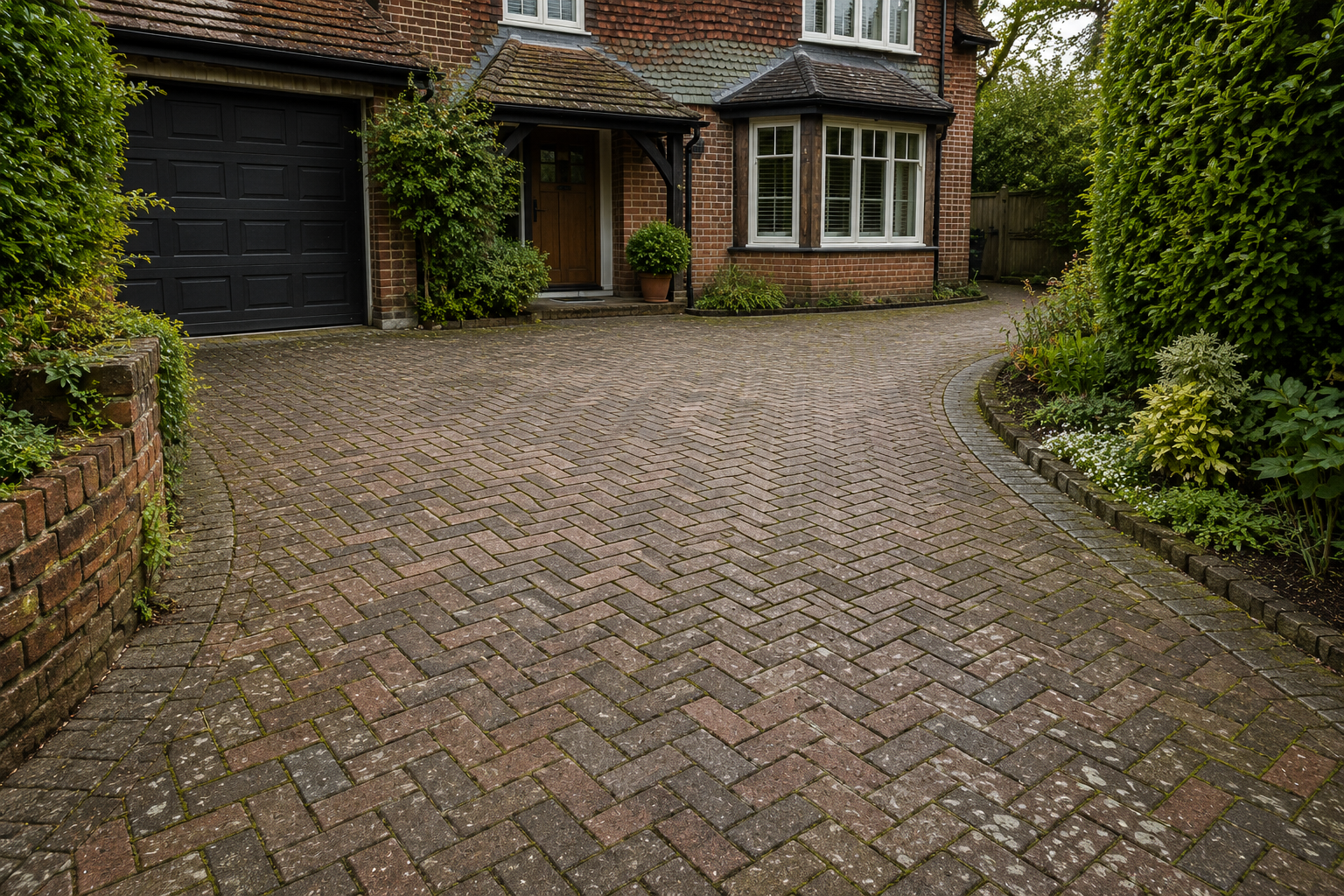

Block Paving Driveways

Block paving is a popular choice across Guildford for its classic look and flexibility.

Correct Installation Method

• 150–250 mm MOT Type 1 sub-base, compacted in layers.
• 30–50 mm sharp sand screed layer, screeded level to accurate falls.
• Blocks laid to pattern with tight joints.
• Kiln-dried sand brushed into joints.
• Plate compaction in multiple passes to lock the surface.
• Edge restraints installed in concrete to prevent lateral spread.

Best Uses

• Family homes needing practical parking space.
• Driveways with turning areas or complex shapes.
• Properties where individual blocks may need replacing in future.

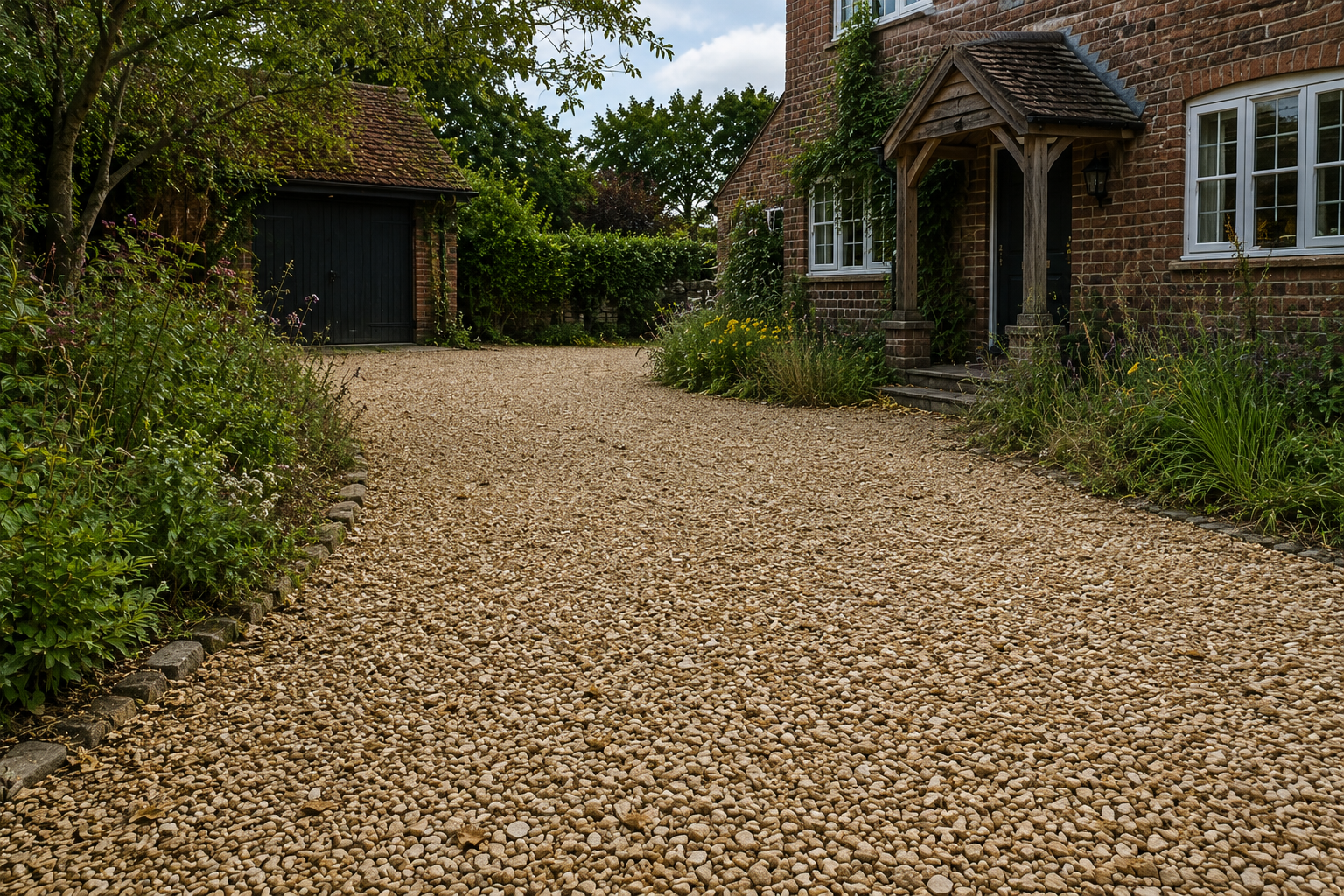

Gravel Driveways

Ideal for rural and edge-of-town properties around Bramley, Shalford and the wider Surrey Hills.

Recommended Build-Up

• 100–150 mm compacted sub-base.
• Optional gravel stabilising grid for slopes or high-traffic areas.
• 20–50 mm decorative gravel layer, topped up as needed over time.

Gravel can be very effective visually, especially when combined with planting and clear edging to keep stones in place.

Resin & Porcelain Driveways

For contemporary Guildford homes, we also install resin-bound and porcelain driveways.

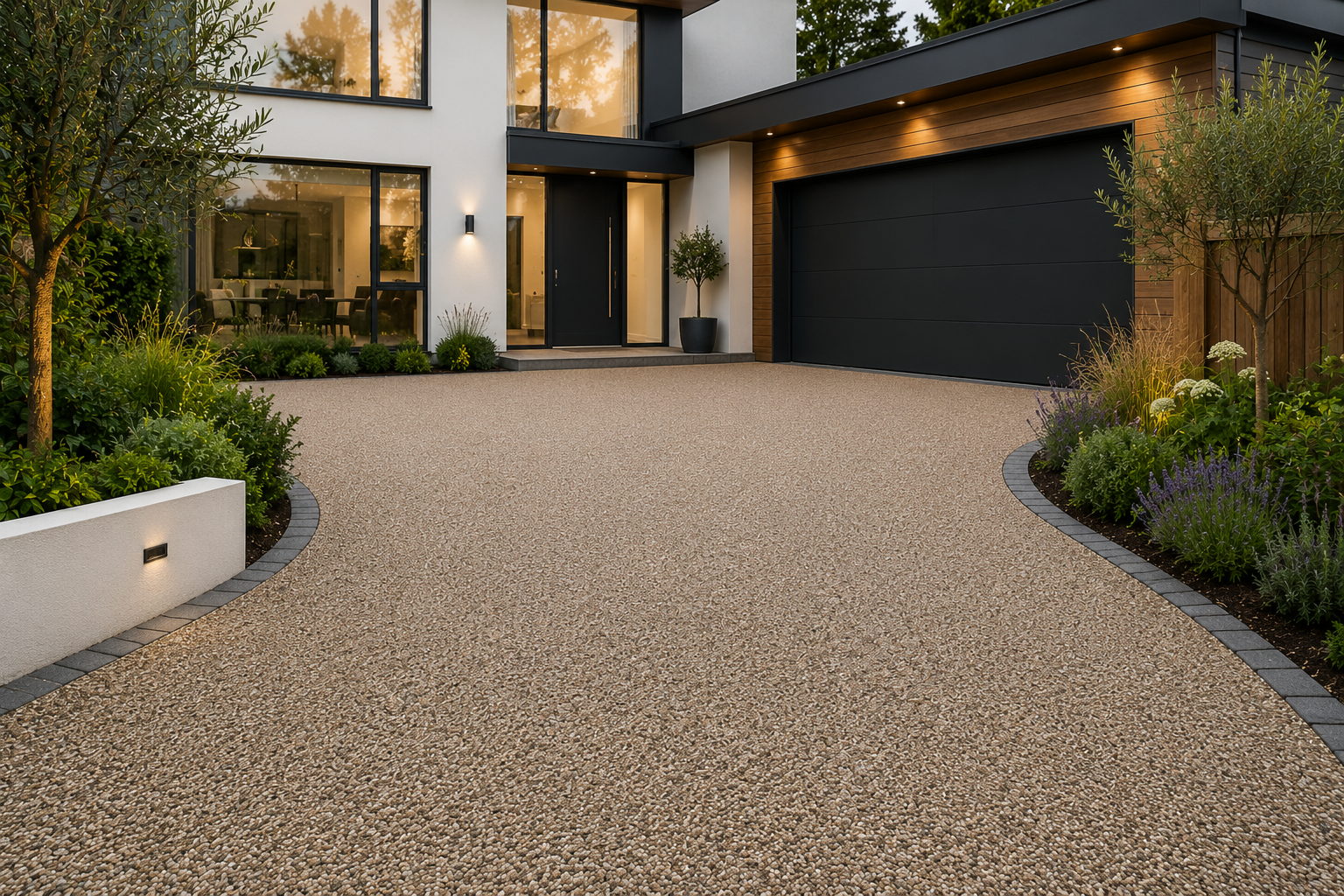

Resin-bound

• Typically laid over a strong asphalt or concrete base.
• Permeable resin systems available for SUDS compliance.
• Low-maintenance with a seamless finish.

Porcelain

• Modern aesthetic with high slip resistance when the right product is chosen.
• Laid on a full mortar bed with appropriate primers and movement joints.
• Requires precise detailing at thresholds, inspection covers and expansion breaks.

Where porcelain is used for both the front driveway and rear terrace, we design the layout so the two spaces feel intentionally linked rather than competing with each other. For more on porcelain behaviour over time, see our porcelain vs sandstone guide for Guildford.

Driveway Costs in Guildford

Typical ranges for high-quality installation (including proper sub-base and drainage):

• Block paving: £120 – £190 per m².
• Gravel: £55 – £95 per m².
• Resin-bound: £130 – £200 per m² (depending on base preparation).
• Stone setts or porcelain: £200 – £350 per m².

For a deeper breakdown of how labour, materials and access influence budgets in the area, see our Guildford landscaping costs 2025 guide.

Areas We Cover

Guildford · Burpham · Merrow · Shalford · Bramley · Stoughton · Chilworth · Compton · Onslow Village · The Surrey Hills

Frequently Asked Questions about Driveways in Guildford

How long should a well-built driveway last?

With correct excavation, sub-base depth and drainage, a domestic driveway should perform well for decades under normal use. Most of the failures we see in Guildford are due to insufficient sub-base or poor water management rather than the surface material itself.

Do I always need SUDS-compliant surfacing for a front driveway?

Not always. Smaller areas and drives that drain into your own permeable land may be exempt from formal SUDS measures, but the design still needs to prevent water running onto the pavement or road. We’ll explain the options — permeable blocks, soakaways or directing water into planting — during our survey.

Can you extend or widen an existing driveway?

Yes. We regularly widen or reconfigure older driveways, tying new work into existing levels and materials where sensible. In many cases it is more cost-effective and visually consistent to resurface the whole area, but we will discuss both approaches with you.

How disruptive is driveway replacement?

There will always be some disruption while the old surface is removed and new layers are built, but careful access planning, spoil management and daily clean-downs keep things manageable. We’ll agree parking arrangements and access for deliveries before work begins.

Planning a Driveway in Guildford?

We’d be pleased to visit your property, assess the ground conditions and provide a fixed quotation based on proper construction standards and current drainage rules.
